Extended Spec
| General |
|

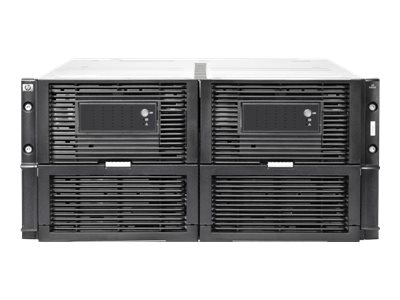

| Device Type |
Storage enclosure |
| Enclosure Type |
Rack-mountable - 5U |
| UNSPSC Information |
43201601 - Computer chassis |
| Chassis |
|
| Installed Devices / Modules Qty |
70 |
| Supported Drives |
SAS-2 |
| Hard Drive |
|
| Type |
HDD - hot-swap |
| Capacity |
70 x 3 TB |
| Interface Type |
SAS 6Gb/s |
| Spindle Speed |
7200 rpm |
| Expansion / Connectivity |
|
| Expansion Bays |
70 (total) / 0 (free) x hot-swap - 3.5" LFF |
| Interfaces |
8 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| System Requirements |
|
| OS Required |
Microsoft Windows Server 2003, Microsoft Windows Server 2003 R2, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESX 4.1, VMware ESX 5.0 |
| Power |
|
| Power Device |
4 x internal power supply - hot-plug |
| Max Supported Qty |
4 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
N+2 |
| Voltage Required |
AC 120/230 V - 50/60 Hz |
| Power Provided |
1200 Watt |
| Dimensions & Weight |
|
| Width |
44.7 cm |
| Depth |
89.12 cm |
| Height |
22.1 cm |
| Weight |
72.58 kg |
| Manufacturer Warranty |
|
| Service & Support |
3 years warranty |
| Service & Support Details |
Limited warranty - parts - 3 years |
| Environmental Parameters |
|
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Compatibility Information |
|
| Designed For |
HPE ProLiant BL420c Gen8, BL460c Gen8, BL465c Gen8, BL660c Gen8, BL660c Gen8 Performance |
