Extended Spec
| General |
|

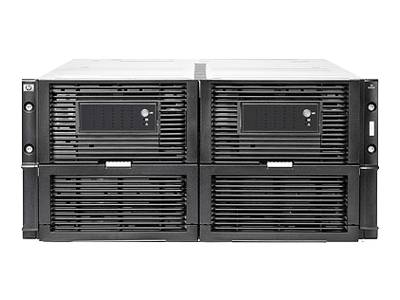

| Device Type |
Storage enclosure |
| Enclosure Type |
Rack-mountable - 5U |
| UNSPSC Information |
43201601 - Computer chassis |
| Chassis |
|
| Installed Devices / Modules Qty |
70 |
| Supported Drives |
SAS-2 |
| Hard Drive |
|
| Type |
HDD - hot-swap |
| Capacity |
70 x 6 TB |
| Interface Type |
SAS 6Gb/s |
| Spindle Speed |
7200 rpm |
| Expansion / Connectivity |
|
| Expansion Bays |
70 (total) / 0 (free) x hot-swap - 3.5" LFF |
| Interfaces |
1 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| Miscellaneous |
|
| Features |
Redundant fans |
| Power |
|
| Power Device |
Internal power supply - hot-plug |
| Max Supported Qty |
4 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
2+2 |
| Voltage Required |
AC 120/230 V - 50/60 Hz |
| Dimensions & Weight |
|
| Width |
44.7 cm |
| Depth |
89.12 cm |
| Height |
22.1 cm |
| Weight |
145 kg |
| Manufacturer Warranty |
|
| Service & Support |
3 years warranty |
| Service & Support Details |
Limited warranty - parts - 3 years |
| Environmental Parameters |
|
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
