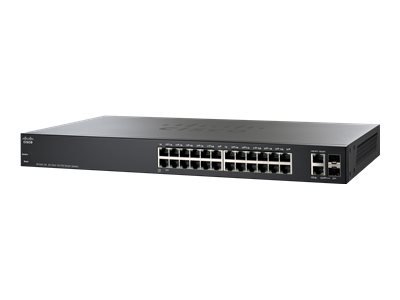

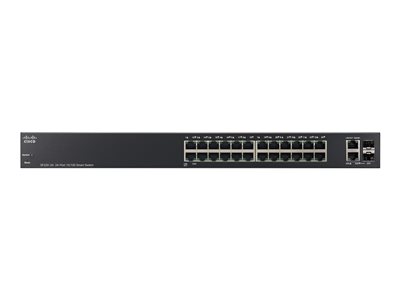

Cisco 220 Series SF220-24 - Switch - Managed - 24 x 10/100 + 2 x combo Gigabit SFP - desktop, rack-mountable

Cisco | SF220-24-K9-EU
SF220-24-K9-EU
SF220-24-K9-EU
SF220-24-K9-EU
SF220-24-K9-EU
SF220-24-K9-EU
SF220-24-K9-EU
SF220-24-K9-EU
SF220-24-K9-EU
  • Enhanced security
  • Easy setup and management
  • Power over Ethernet (PoE)
Getting product prices...

Extended Spec

General
Device Type Switch - 24 ports - Managed
Enclosure Type Desktop, rack-mountable 1U
Subtype Fast Ethernet
Ports 24 x 10/100 + 2 x combo Gigabit SFP
Performance Forwarding performance (64-byte packet size): 6.55 Mpps ¦ Switching capacity: 8.8 Gbps
MAC Address Table Size 8192 entries
Jumbo Frame Support 9216 bytes
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Authentication Method RADIUS, TACACS+
Features Flow control, Layer 2 switching, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, reset button, fanless, LLDP support, DHCP relay, DHCP client, Energy Efficient Ethernet, Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Type of Service (ToS), 4.1MB packet buffer
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
RAM 128 MB
Flash Memory 32 MB
Status Indicators Port transmission speed, system, link/activity
UNSPSC Information 43222612 - Network switches
Expansion / Connectivity
Interfaces 24 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45 ¦ 2 x SFP
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Cables Included 1 x console cable
Rack Mounting Kit Included
MTBF 603,729 hours
Compliant Standards C-Tick, UL 60950, FCC CFR47 Part 15, CSA 22.2
Localisation Europe
Dimensions & Weight
Width 44 cm
Depth 20.1 cm
Height 4.4 cm
Weight 2.6 kg
Manufacturer Warranty
Service & Support Limited warranty - replacement - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year ¦ Limited warranty - power supply and fans - 1 year ¦ Limited warranty - software - 90 days
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -20 °C
Max Storage Temperature 70 °C
