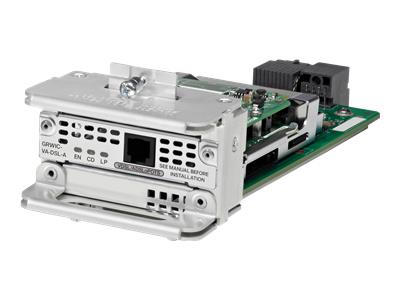

Cisco Connected Grid Multimode VDSL2 and ADSL2/2+ GRWIC - DSL modem - GRWIC - for Cisco 2010, 2010 Connected Grid

Cisco | GRWIC-VA-DSL-A=
GRWIC-VA-DSL-A=
GRWIC-VA-DSL-A=
GRWIC-VA-DSL-A=
GRWIC-VA-DSL-A=
GRWIC-VA-DSL-A=
GRWIC-VA-DSL-A=
  • Dying gasp
  • IEEE 802.1q VLAN tagging
  • Independent DSL firmware loading
  • Ethernet packet transfer mode (PTM) based only on IEEE 802.3ah 64/65 octet encapsulation
  • Support for double-ended line testing (DELT) diagnostics mode
  • DSL Forum TR-067 compliance
  • T1.413 ANSI ADSL DMT issue two compliance
  • DSL Forum TR-067, and TR-100 conformity
  • Impulse noise protection (INP) and extended INP
  • Downstream power backoff (DPBO)
Getting product prices...

Extended Spec

General
Device Type DSL modem
Form Factor Internal
Modem
Bus GRWIC
Connectivity Technology Wired
Digital Signaling Protocol ADSL2, ADSL2+, VDSL2, ADSL over POTS
Protocols & Specifications ITU G.993.2, ITU G.992.5 Annex A
Networking
Features Dying Gasp support
Compliant Standards IEEE 802.1Q, IEEE 802.3ah
Expansion / Connectivity
Interfaces 1 x VDSL2 - RJ-11
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, JATE, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, VCCI V-3, TIA/EIA-968-A, TBR4, TBR12, TBR13, CNS 13438, IEC60950-1, EN 300 386, AS/ASIF S016, AS/ASIF S038, RTTE, TBR1, TBR2, GB 60950-1, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width 8.26 cm
Depth 21.6 cm
Height 5.08 cm
Weight 400 g
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 85% (non-condensing)
Compatibility Information
Designed For Cisco 2010, 2010 Connected Grid
