| General |
|
| Device Type |

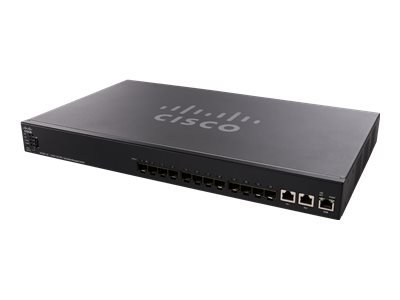

Switch - 12 ports - L3 - Managed - stackable |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
10 Gigabit Ethernet |
| Ports |
12 x 10 Gigabit SFP+ + 2 x combo 10 Gigabit SFP+ |
| Performance |
Forwarding performance (64-byte packet size): 178.56 Mpps ¦ Switching capacity: 240 Gbps |
| Capacity |
VLANs supported: 4094 ¦ IPv4 routes (static): 7168 ¦ IPv6 routes (static): 1792 ¦ ACL rules: 2000 ¦ QoS hardware queues: 8 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9000 bytes |
| Max Units In A Stack |
8 |
| Routing Protocol |
RIP-2, IGMPv2, IGMP, IGMPv3, policy-based routing (PBR), MLDv2, MLD, VRRPv2, VRRPv3, CIDR |
| Remote Management Protocol |
SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP |
| Encryption Algorithm |
SSL |
| Authentication Method |
RADIUS, TACACS, TACACS+ |
| Features |
Flow control, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, High Availability, Multicast Storm Control, Unicast Storm Control, firmware upgradable, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), DHCP relay, Remote Switch Port Analyzer (RSPAN), DHCP client, Management Information Base (MIB), dual firmware images, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Duplicated Address Detection, DiffServ Code Point (DSCP) support, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, Internet Control Message Protocol (ICMP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard, Guest VLAN, STP BPDU Guard |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Status Indicators |
Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan |
| Expansion / Connectivity |
|
| Interfaces |
10 x 10GBase-T SFP+ ¦ 2 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 1 x management (Gigabit LAN) |
| Power |
|
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Features |
Redundant Power System (RPS) connector |
| Miscellaneous |
|
| Cables Included |
1 x console cable |
| Rack Mounting Kit |
Included |
| MTBF |
652,253 hours |
| Compliant Standards |
Plug and Play, UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6 |
| Localisation |
Europe |
| Dimensions & Weight |
|
| Width |
44 cm |
| Depth |
4.4 cm |
| Height |
25.7 cm |
| Weight |
3.42 kg |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 1 year ¦ Technical support - web support - 1 year |
| Environmental Parameters |
|
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
