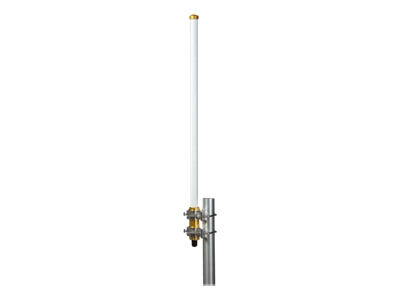

Cisco - Antenna - 5 dBi - omni-directional - outdoor, wall-mountable, pole mount - white

Cisco | ANT-LPWA-DB-O-N-5=
ANT-LPWA-DB-O-N-5=
ANT-LPWA-DB-O-N-5=
ANT-LPWA-DB-O-N-5=
ANT-LPWA-DB-O-N-5=
ANT-LPWA-DB-O-N-5=
ANT-LPWA-DB-O-N-5=
Getting product prices...

Extended Spec

General
Product Type Antenna
Package Content 2 mounting brackets, 4 x hex nuts, 4 x split lock washers, 4 flat washers, UV-resistant fibreglass radome, hold anodised sleeve, top cap with N (female) connector, 2 x V-bolt clamps, 2 x hex bolts
Depth 3.33 cm
Height 69.2 cm
Weight 790 g
Enclosure Colour White
Aerial
Aerial Placing / Mounting Outdoor, wall-mountable, pole mount
Compatibility ISM, WPAN, LoRaWan
Frequency Range 863 - 928 MHz
Gain 5 dBi
Directivity Omni-directional
Voltage Standing Wave Ratio (VSWR) 1.5:1, 1.65:1 Max
Horizontal Beamwidth 360°
Vertical Beamwidth 30°
Impedance 50 Ohm
Cabling & Wiring
Compliant Standards IP67
Connector Provided 1 x N connector female
Miscellaneous
Features Lightning-resistant, IP67 protection, vertical polarisation, DC-grounded for ESD protection
Environmental Parameters
Min Operating Temperature -40 °C
Max Operating Temperature 70 °C
