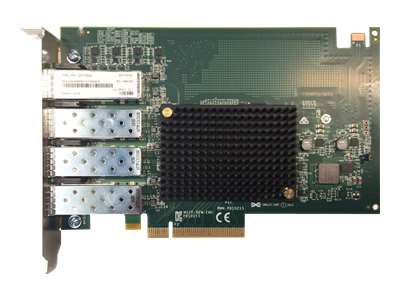

Lenovo ThinkSystem Emulex OCe14104B-NX - Network adapter - PCIe 3.0 - 10 Gigabit SFP+ x 4 - for ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX1320 Appliance; VX7820 Appliance

Lenovo | 7ZT7A00493
7ZT7A00493
7ZT7A00493
7ZT7A00493
7ZT7A00493
7ZT7A00493
7ZT7A00493
Getting product prices...

Extended Spec

General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0
Networking
Ports 10 Gigabit SFP+ x 4
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Capacity MAC addresses per port: 128 ¦ Jumbo frame size: 9216
Features Traffic shaping, RDMA support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload, RDMA over Converged Ethernet (RoCE), Unified Fabric Port (UFP), RDMA over Converged Ethernet (RoCE) v2, Virtual Fabric mode, Switch Independent mode, Virtual Ethernet Bridge (VEB), Opens Fabrics Enterprise Distribution (OFED)
Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg
Expansion / Connectivity
Interfaces 4 - SFP+
Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Power
Power Consumption Operational 14.4 Watt
Dimensions & Weight
Depth 16.7 cm
Height 11.1 cm
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 55 °C
Humidity Range Operating 5 - 95% (non-condensing)
