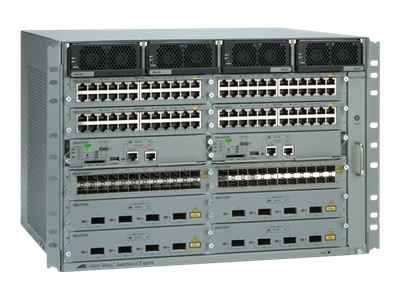

Allied Telesis SwitchBlade AT SBx3112 Redundant Controller DC Power Chassis Bundle - Switch - L2+ - Managed - 12 x SFP+ - rack-mountable - DC power

Allied Telesis | AT-SBX3112-12XS-80
AT-SBX3112-12XS-80
AT-SBX3112-12XS-80
AT-SBX3112-12XS-80
AT-SBX3112-12XS-80
AT-SBX3112-12XS-80
AT-SBX3112-12XS-80
  • FTTx service provider applications
  • High-availability architecture
  • Power over Ethernet Plus (PoE+)
  • Secure management
  • Securing the network edge
  • Secure differentiation
  • Environmentally friendly
Getting product prices...

Extended Spec

General
Device Type Switch - 12 ports - L2+ - Managed
Enclosure Type Rack-mountable 7U
Subtype 10 Gigabit Ethernet
Ports 12 x SFP+
Jumbo Frame Support 10KB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 2c, SSH-2, CLI
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, modular design, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, ALG support, DiffServ support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, LLDP support
Compliant Standards IEEE 802.2, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
UNSPSC Information 43222612 - Network switches
Expansion / Connectivity
Interfaces 12 x 10GBase-X SFP+ ¦ 2 x console RJ-45 management ¦ 2 x 1000Base-T RJ-45 management ¦ 2 x USB Type A
Expansion Slots 12 (total) / 8 (free) x Expansion Slot ¦ 2 (total) / 2 (free) x SD Memory Card
Installed Modules Qty (Max) 4 (installed) / 12 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Provided 1200 Watt
Voltage Required DC -40 -60 V
Miscellaneous
MTBF 260,000 hours
Compliant Standards FCC Class A certified, TUV, C-Tick, EN55024, EN55022 Class A, UL 60950-1, EN 60950-1, EN 60825, cULus
Dimensions & Weight
Width 48 cm
Depth 38.8 cm
Height 31 cm
Weight 28.91 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 90% (non-condensing)
Min Storage Temperature -25 °C
Max Storage Temperature 70 °C
Humidity Range Storage 5 - 95% (non-condensing)
