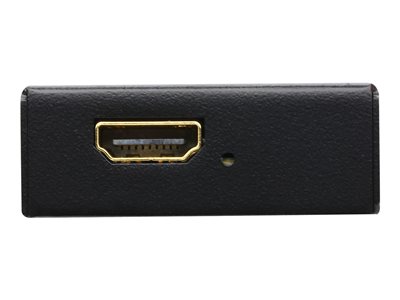

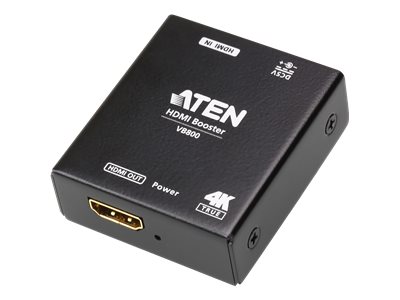

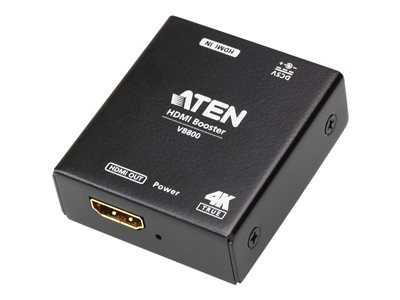

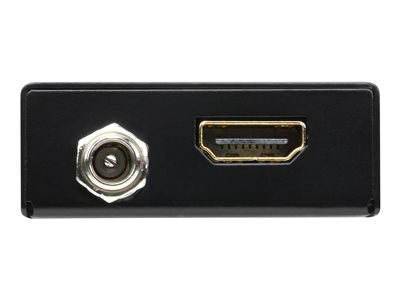

ATEN VB800 - Video/audio extender - HDMI - up to 10 m - for VanCryst VM6809H, VS0801H

ATEN | VB800
VB800
VB800
VB800
VB800
VB800
VB800
VB800
VB800
VB800
VB800
  • Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4) video and standard 1080p (1920 x 1080 @ 60 Hz)
  • HDMI and HDCP 2.2 compatible
  • 4K resolution when cascaded up to 10 levels
  • A single unit can be powered from the source device
  • Supports HDR
  • Plug-and-Play - no software installation required
  • Rack mountable
Getting product prices...

Extended Spec

General
Device Type Video/audio extender
Form Factor External
Networking
Connectivity Technology Wired
Data Link Protocol HDMI
Max Resolution 4096 x 2160 @ 60 Hz
Max Transfer Distance 10 m
Features 4K resolution support
Compliant Standards HDCP 2.2
Expansion / Connectivity
Interfaces 1 x HDMI (input) - 19 pin HDMI Type A ¦ 1 x HDMI (output) - 19 pin HDMI Type A
Miscellaneous
Compliant Standards RoHS
Power
Power Device External power adapter
Power Consumption Operational 0.99 Watt
Dimensions & Weight
Width 5.6 cm
Depth 4.9 cm
Height 1.7 cm
Weight 90 g
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 0 - 80% (non-condensing)
