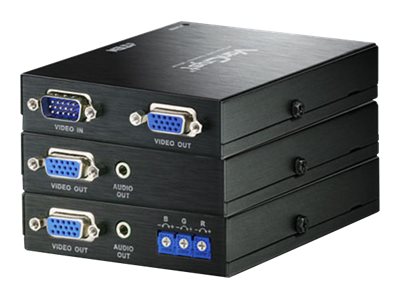

ATEN VE170Q Local and Remote Units - Video/audio extender - up to 300 m

ATEN | VE170Q
VE170Q
VE170Q
VE170Q
VE170Q
VE170Q
VE170Q
  • Uses Cat 5e cable to connect the transmitter and receiver uints
  • Supports one local and one remote display
  • Long distance transmission
  • Deskew function (VE170RQ) - allows you to synchronize the time delay of RGB signals to compensate for distance
  • Superior video quality
  • Audio enabled
  • Adjustable gain/compensation control
  • BBuilt-in 8KV/15KV ESD protection
  • Rack-mountable
  • Complies with VESA FDMI mount standard
Getting product prices...

Extended Spec

General
Device Type Video/audio extender
Form Factor External
UNSPSC Information 43201614 - Console extenders
Networking
Connectivity Technology Wired
Max Resolution 1920 x 1200 @ 60 Hz
Max Transfer Distance 300 m
Features Deskew technology
Expansion / Connectivity
Interfaces 1 x VGA (input) - HD-15 male ¦ 3 x VGA (output) - HD-15 female ¦ 1 x audio (input) - mini jack female ¦ 2 x audio (output) - mini jack female ¦ 1 x network - RJ-45 female
Miscellaneous
Cables Included 1 x VGA / audio cable - 1.8 m
Mounting Kit Included
Compliant Standards RoHS, WEEE
Power
Power Device External power adapter
Installed Qty 2
Dimensions & Weight
Width 8.56 cm
Depth 11.95 cm
Environmental Parameters
Min Operating Temperature 5 °C
Max Operating Temperature 50 °C
Humidity Range Operating 0 - 80% (non-condensing)
