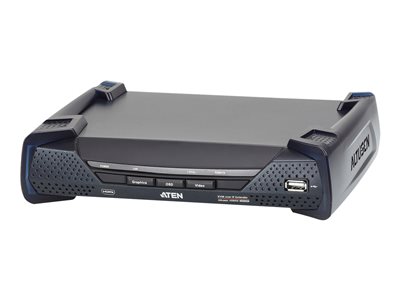

ALTUSEN KE8950R 4K HDMI Single Display KVM over IP - KVM / audio / serial / USB extender - receiver - USB - for P/N: CS1144DP4UN

ATEN | KE8950R
KE8950R
KE8950R
KE8950R
KE8950R
KE8950R
KE8950R
  • Ultra High Definition (UHD) video quality - up to 3840 x 2160 @ 30Hz (4:4:4); 36-bit color depth
  • Support interlaced video (1080i)
  • Support standard HDMI resolutions from 640 x 480 up to 3840 x 2160 @ 30 Hz
  • Support stereo speakers and stereo microphone
  • USB virtual media support
  • Auto-MDIX - automatically detects cable type
  • Built-in 8 kV/15 kV ESD protection and 1 kV surge protection
  • Fanless design for silent operations that are energy efficient
  • Hot pluggable
  • Upgradeable firmware
Getting product prices...

Extended Spec

General
Device Type KVM / audio / serial / USB extender
Form Factor External
Networking
Connectivity Technology Wired
Remote Management Protocol HTTP, CLI
Keyboard / Mouse Interface USB
Max Resolution 3840 x 2160 @ 30 Hz
Status Indicators Power, status, LAN
Features On-Screen Display, LDAP support, auto-uplink (auto MDI/MDI-X), manageable, firmware upgradable, Virtual Media support, RADIUS support, reset button, fanless, 4K resolution support, 8KV ESD Protector, 15KV ESD Protector, 2K resolution support, 36-bit Deep Color support, AES encryption, EDID Expert, 1080i resolution support, 1KV surge protection
Compliant Standards HDCP 1.4
Expansion / Connectivity
Interfaces 1 x HDMI - 19 pin HDMI Type A female ¦ 2 x USB - Type A female ¦ 2 x USB keyboard / USB mouse - Type A female ¦ 1 x headphones / speakers - mini jack female ¦ 1 x microphone - mini jack female ¦ 1 x RS-232 - DB-9 male ¦ 1 x Ethernet 1000 - SFP female ¦ 1 x network - RJ-45 female
Miscellaneous
Included Accessories HDMI LockPro
Rack Mounting Kit Optional
Compliant Standards AES, HDCP 1.4
Power
Power Device External power adapter
Power Consumption Operational 5.65 Watt
Dimensions & Weight
Width 22.75 cm
Depth 17.16 cm
Height 5.48 cm
Weight 1.23 kg
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 0 - 95% (non-condensing)
