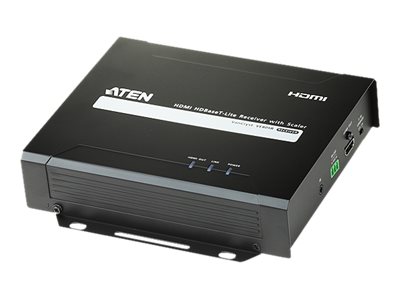

ATEN VE805R HDMI HDBaseT-Lite Receiver with Scaler - Video/audio/infrared/serial extender - receiver - HDMI, HDBaseT - up to 60 m

ATEN | VE805R-AT-E
VE805R-AT-E
VE805R-AT-E
VE805R-AT-E
VE805R-AT-E
VE805R-AT-E
VE805R-AT-E
  • HDBaseT connectivity
  • HDBaseT anti-jamming
  • Bi-directional RS-232 channel
  • Built-in scaler
  • Seamless switch
  • Video wall
  • Bi-directional IR channel
Getting product prices...

Extended Spec

General
Device Type Video/audio/infrared/serial extender (receiver)
Form Factor Rack-mountable
Networking
Connectivity Technology Wired
Data Link Protocol HDMI, HDBaseT
Max Video Bandwidth 225 MHz
Max Transfer Distance 60 m
Features HDCP compliant, 3D support, metal housing
Expansion / Connectivity
Interfaces 1 x HDBaseT - RJ-45 ¦ 1 x IrDA ¦ 1 x RS-232 - terminal block ¦ 1 x HDMI - 19 pin HDMI Type A
Power
Power Consumption Operational 9.5 Watt
Dimensions & Weight
Width 16.92 cm
Depth 18.18 cm
Height 4.2 cm
Weight 830 g
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 0 - 80% (non-condensing)
