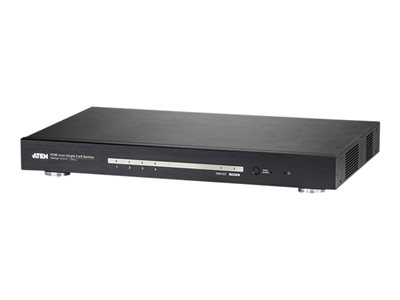

VS1814T-AT-E 4-Port HDMI Over Cat 5 Splitter -HDbaseT

ATEN | VS1814T-AT-E
VS1814T-AT-E
VS1814T-AT-E
VS1814T-AT-E
VS1814T-AT-E
VS1814T-AT-E
VS1814T-AT-E
VS1814T-AT-E
VS1814T-AT-E
  • One HDMI input to 4HDMI outputs via a Cat 5e cable
  • Offers local HDMI output
  • Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
  • Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
  • HDMI (3D, Deep Color, 4k x 2k), HDCP compatible
  • Supports Dolby True HD and DTS HD master audio
  • Consumer Electronics Control (CEC) support
  • Built-in bi-directional RS-232 serial remote port for high-end system control
  • Supports resolutions of up to Ultra HD 4k x 2k and 1080p Full HD
  • Supports up to 340 MHz bandwidth for high performance video
  • EDID mode selection
Getting product prices...

Extended Spec

General
Device Type Video/audio extender
Form Factor Rack-mountable
Networking
Ports Qty 4
Connectivity Technology Wired
Data Link Protocol HDMI, HDBaseT
Max Resolution 4096 x 2160
Max Video Bandwidth 340 MHz
Max Transfer Distance 100 m
Status Indicators Port status, power, status, link/activity
Features HDCP compliant, 3D support, 4K resolution support, HDBaseT technology, 2K resolution support, Dolby TrueHD support, DTS-HD Master Audio support
Expansion / Connectivity
Interfaces 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 4 x HDBaseT (output) - RJ-45 female ¦ 1 x RS-232 - DB-9 female
Miscellaneous
Compliant Standards CEC
Power
Power Device External power adapter
Voltage Required AC 120/230 V
Power Consumption Operational 18.2 Watt
Dimensions & Weight
Width 43.24 cm
Depth 26.11 cm
Height 4.4 cm
Weight 3.47 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 0 - 80% (non-condensing)
