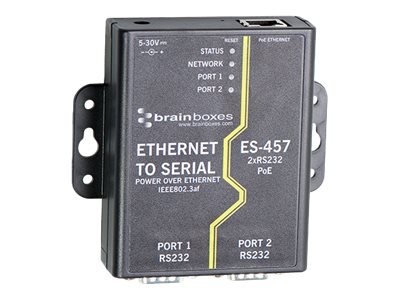

Brainboxes ES-457 - Device server - 2 ports - 100Mb LAN, RS-232

Brainboxes | ES-457
ES-457
ES-457
ES-457
ES-457
ES-457
ES-457
  • 2 Port RS-232 with Power over Ethernet IEEE802.3af
  • Ethernet to Serial Device Server
  • Data rate from 110 to 1,000,000 baud
  • User friendly interface, simple to use, powerful in operation
  • Serial Port Tunneling allows serial cable replacement over any distance, no software required
Getting product prices...

Extended Spec

General
Device Type Device server
Width 9.63 cm
Depth 10.1 cm
Height 2.5 cm
Weight 127 g
UNSPSC Information 43222630 - Multistation access units
Networking
Form Factor External
Ports Qty 2
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, RS-232
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, BOOTP, DHCP
Remote Management Protocol Telnet, HTTP
Features Power over Ethernet (PoE), auto-uplink (auto MDI/MDI-X)
Compliant Standards IEEE 802.3af
Expansion / Connectivity
Interfaces 2 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45
Miscellaneous
Compliant Standards RoHS, IP30
Power
Power Consumption Operational 1.85 Watt
Software / System Requirements
OS Required Microsoft Windows 2000, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2012, Microsoft Windows XP / Vista / 7 / 8 (32/64 bits)
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 60 °C
Humidity Range Operating 5 - 95% (non-condensing)
