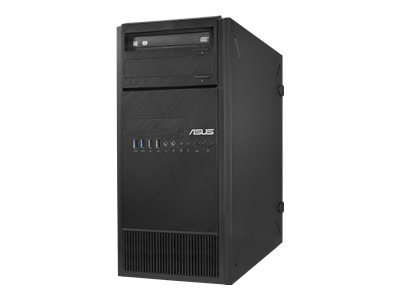

ASUS TS100-E9-PI4 - Server - tower 1-way - no CPU - RAM 0 GB - no HDD - DVD-Writer - AST1400 - Gigabit Ethernet - no OS - monitor: none

ASUS | 90SV03RA-M02CE0
90SV03RA-M02CE0
90SV03RA-M02CE0
90SV03RA-M02CE0
90SV03RA-M02CE0
90SV03RA-M02CE0
90SV03RA-M02CE0
90SV03RA-M02CE0
90SV03RA-M02CE0
90SV03RA-M02CE0
90SV03RA-M02CE0
  • Zen-quiet and energy-saving
  • Up to six expansion slots enable extreme flexibility
  • User friendly with USB device
  • Complete remote server management
Getting product prices...

Extended Spec

General
Type Server
Product Form Factor Tower
Server Scalability 1-way
Internal Bays Qty 4
Front Accessible Bays Qty 2
UNSPSC Information 43211501 - Computer servers
Processor / Chipset
Max CPU Qty 1
CPU Upgradability Upgradable
CPU Socket LGA1151 Socket
Chipset Type Intel C232
RAM
Installed Size 0 GB / 64 GB (max)
Technology DDR4 SDRAM - ECC
Form Factor DIMM 288-pin
Slots 4 (Total) / 4 (empty)
Features Unbuffered, dual channel memory architecture
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID
Controller Interface Type SATA 6Gb/s
Channel Qty 6
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
Type DVD-RW DVD-Writer
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor ASPEED AST1400
Video Memory 64 MB
Video Interfaces VGA
Networking
Ethernet Ports 2 x Gigabit Ethernet
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Bays 3 (total) / 3 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x internal 2.5" ¦ 2 (total) / 1 (free) x external 5.25"
Slots 1 (total) / 1 (free) x CPU ¦ 4 (total) / 4 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (x4 mode) ¦ 4 (total) / 4 (free) x PCI ¦ 1 (total) / 1 (free) x MIO
Interfaces 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 1 x VGA ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 3.0 (2 front, 2 rear)
Miscellaneous
Compliant Standards FCC Class B certified, C-Tick, BSMI
Power
Device Type Power supply
Installed Qty 1
Nominal Voltage AC 120/230 V (50 - 60 Hz)
Power Provided 300 Watt
80 PLUS Certification 80 PLUS Bronze
Operating System / Software
OS Provided No operating system
Manufacturer Warranty
Service & Support Limited warranty - replacement - 3 years
Dimensions & Weight
Width 19 cm
Depth 43.5 cm
Height 42.3 cm
Weight 10.32 kg
Environmental Parameters
Min Operating Temperature 10 °C
Max Operating Temperature 35 °C
Sound Emission 26 dB
