Kensington SD5920T EQ - Docking station - for laptop - USB4 / Thunderbolt 4 - 2 x HDMI, 3 x DP, 2 x Thunderbolt 4 - 1GbE, 2.5GbE - 149.1 Watt - Europe

Kensington | K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
K35234EU
  • Supports up to Quad 4K @ 60Hz for Thunderbolt 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink . * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
  • Optimised for Thunderbolt 4, Thunderbolt 3, USB4 and USB-C devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).
  • Composed of 100% post-consumer recycled (PCR) aluminium* and delivered in FSC certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.
  • Combines Thunderbolt with DisplayLink to provide next-level productivity experiences, including up to 40Gbps of data, video and audio, daisy chain support, together with Intel VT-d DMA protection.
  • Up to 100W Charging (96W certified) to power your laptop and connected accessories.
  • Productive 16-in-1 design allows users to work more efficiently and connect to a variety of setups.
  • Zero-footprint mounting option support a tidier workspace.

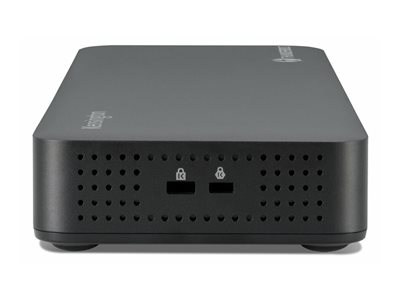

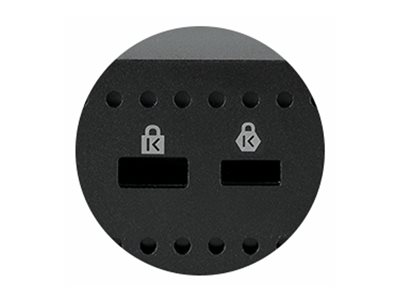

  • Security cable lock slots support device protection.
  • 3-Year limited warranty.
Getting product prices...

Extended Spec

General
Product Type Docking station - for laptop
Width 22.5 cm
Depth 8.5 cm
Height 2.2 cm
Weight 600 g
Enclosure Colour Midnight blue
Localisation Europe
Video
Max Resolution Details 6K - 60 Hz (Dual Display) ¦ 4K - 60 Hz (Quad Display)
Networking
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Expansion / Connectivity
Interfaces 1 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 - 24 pin USB-C ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm ¦ 1 x network - 100M/1G/2.5G Gigabit Ethernet - RJ-45 ¦ 1 x Thunderbolt 4/USB4 downstream with Power Delivery (15W) - 24 pin USB-C ¦ 2 x Thunderbolt 4 - 24 pin USB-C ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 3 x audio / video - DisplayPort - 20 pin DisplayPort (1.4)
Miscellaneous
Input Device SD card reader, microSD card reader

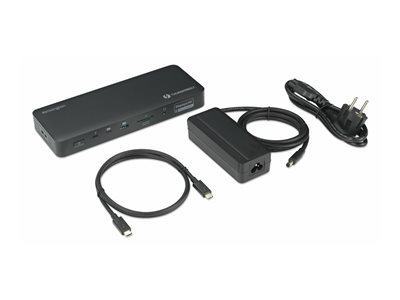

Cables Included 1 x Thunderbolt 4 cable - integrated - 1 m
Included Accessories Power cable (EU), power adapter
Features 96W power delivery, security lock slot (cable lock sold separately), 100% recycled aluminium, USB-C Alt Mode, fast charging, up to 40Gbps data transfer, 73% post-consumer recycled plastic, LED indicator
Security Slot Type Kensington nano security slot / Kensington security slot
Compliant Standards DisplayLink certified, Plug and Play, DisplayPort 1.2, DisplayPort 1.4, FCC, IC, UKCA, RCM, ERP, RoHS, CB, ACCO RSL, HDCP, USB Power Delivery 3.0, EMC 2014/30/EU, ErP 2009/125/EC, RoHS 2011/65/EU Amendment 2015/863, EN 55032:2015+A11:2020, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN IEC 61000-3-2:2019+A2:2024, EN 61000-3-3:2013+A2:2021, EN 61000-3-3:2013+A2:2021+AC:2022-01, Directive 1275/2008/EC, Directive 801/2013/EU, EN 50564:2011
Power
Power Device Power adapter
Power Provided 149.1 Watt
System Requirements
OS Required Apple macOS 11 or later
Additional Requirements Apple M1 / M2 / M3 (M1 Pro/Max, M2 Pro/Max, M3 Pro/Max), 8 GB RAM
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Width 24.2 cm
Shipping Depth 10.8 cm
Shipping Height 10 cm
Shipping Weight 1.19 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
