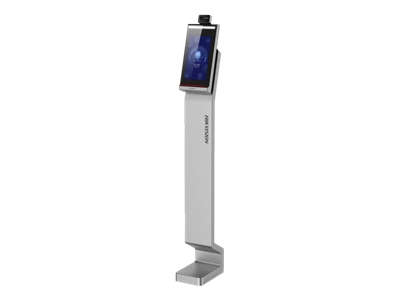

Hikvision DS-K5604A-3XF/V - Face recognition terminal - wired - Ethernet

Hikvision | DS-K5604A-3XF/V
DS-K5604A-3XF/V
DS-K5604A-3XF/V
DS-K5604A-3XF/V
DS-K5604A-3XF/V
DS-K5604A-3XF/V
DS-K5604A-3XF/V
DS-K5604A-3XF/V
DS-K5604A-3XF/V
  • Plug & play
  • Supports rapid deployment - free of wiring, installation, or configuration
  • Supports Vanadium Oxide uncooled sensor to measure target's temperature
  • Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: ± 0.5 °C without black body calibration
  • Recognition distance: 0.3 to 2 m
  • Fast temperature measurement mode: Detects face and takes skin-surface temperature without identity authentication
  • Multiple authentication modes with temperature measure are available
  • Face mask wearing alert
  • Forced mask wearing alert
  • Displays temperature measurement results on the authentication page
  • Triggers voice prompt when detecting fever
  • Configurable door status (open/close) when detecting fever
  • Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software
  • Integrated design with stand bracket
Getting product prices...

Extended Spec

General
Product Type Face recognition terminal
Environment Indoor
Functions Temperature measuring, camera
Connectivity Technology Wired - Ethernet, USB, RS-485, Wiegand
Features 2-way audio, face detection, up to 100000 events, 50000 faces capacity, mask detection
Control Unit
Input Type Touch screen
Operating System Linux
Built-in Devices 2.0 megapixel camera
Internet of Things (IoT)
Display 10.1" - LCD
Display Resolution 1024 x 768 pixels
Temperature Range 30 - 45 °C
Measurement Accuracy ±0.5 °C
Interfaces Wiegand ¦ LAN ¦ Serial (RS-485) ¦ 2 x USB ¦ Lock relay ¦ Tamper switch
Camera
Features Watchdog function, Face Recognition
Miscellaneous
Compliant Standards Plug and Play
Dimensions & Weight
Width 17.2 cm
Depth 25.071 cm
Height 139.895 cm
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 10 - 90% (non-condensing)
