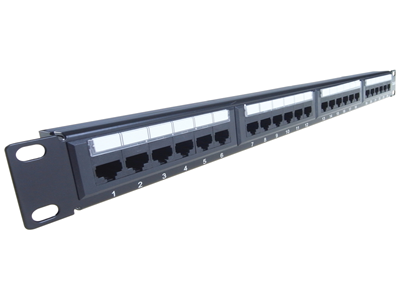

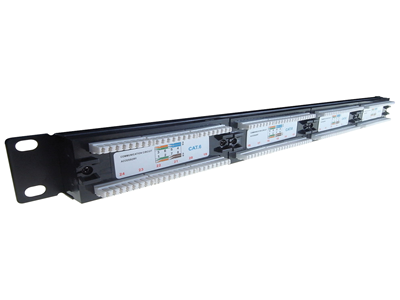

CONNEkT GEAR - Patch panel - CAT 6 - UTP - RJ-45 X 24 - black powder coat - 1U

Group Gear | 90-0030
90-0030
90-0030
90-0030
90-0030
90-0030
90-0030
90-0030
90-0030
90-0030
90-0030
  • Screen printed port numbering for easy port identification

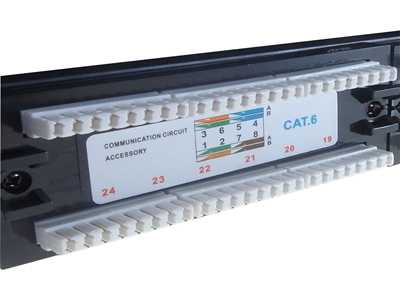

  • Rear cable management is set out in LSA style termination blocks
  • Ample rear cable management positions and IDC blocks allow easy use of an IDC punchdown tool ensuring trouble-free installation
  • To relieve cable stress cable tie bridges are placed between the IDC blocks
  • High quality pressed steel front panel construction
Getting product prices...

Extended Spec

General
Cable management system Cable tie
Dimensions 1U| 480 x 33 x 44mm (W x D x H)
IDC Plastic Polycarbonate high impact UL94V-0 thermoplastic
IDC terminals Feature phosphor bronze & nickel coating
IDC terminals contact compatibility 22 - 26AWG solid wires
jack housing PBT High impact UL94V-0 thermoplastic (15% glass fibre filled)
Number of ports 24 ports
Operating temp 0°C - 70°C
Panel Materials S45C (Black powder coating)
plastic frame ABS High impact UL94V-0 thermoplastic
Port connection RJ45 socket
RJ45 minimum life 750 insertions
RJ45 socket 50 Micron gold plated contact pins
Shielding No
Specification Cat 6
Storage temperature -40°C - 85°C
Termination style IDC punchdown
wiring specification T568A & T568B
