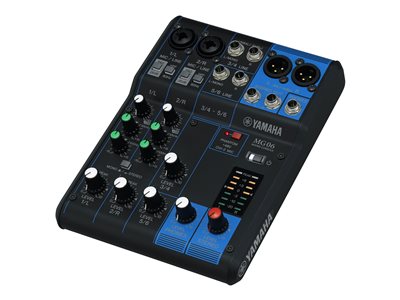

Yamaha MG06 - Analogue mixer - 6-channel

Yamaha | MG06
MG06
MG06
MG06
MG06
MG06
MG06
MG06
MG06
MG06
MG06
MG06
MG06
  • Road tough, studio ready
  • D-PRE - discrete mic preamps
  • High quality sound op-amp
  • Switchable phantom power & PAD switch
  • 1-knob compressors
  • EQ and high-pass filters
  • Built-in SPX digital effects
  • Metal chassis
  • Internal universal power supply
  • XLR connector
Getting product prices...

Extended Spec

General
Type Analogue mixer
UNSPSC Information 45111704 - Audio mixing consoles
Mixer
Channels Qty (total) 6-channel
Frequency Response 20 Hz - 20 kHz
Mic Phantom Power 48 V
Control Types Knobs
Headphones Output Yes
Meter Indicator 2 x LED level meters (7 segments)
Features Headphone output volume control
Channel Description
Mic Channels 2 mono
Mic Channels Connector XLR / phone 6.3 mm
Line Channels 4 mono / 2 stereo
Line Channels Connector Phone 6.3 mm
EQ Band Qty 2
Connections
Connector Type 2 x audio line-in / microphone (XLR / phone 6.3 mm) - top ¦ 2 x audio line-in (phone mono 6.3 mm x 2) - top ¦ 1 x audio line-out (phone mono 6.3 mm x 2) - top ¦ 1 x balanced audio output (XLR x 2) - top ¦ 1 x headphones (phone stereo 6.3 mm) - top
Power
Max Power Consumption 12 W
Miscellaneous
Included Accessories Power adapter
Dimensions & Weight
Width 14.9 cm
Depth 20.2 cm
Height 6.2 cm
Weight 900 g
