Extended Spec
| General |
|
| Printer Type |
Plastic card printer - dye sublimation retransfer - colour |
| Localisation |
United Kingdom, Europe |
| Printer |
|
| Print Speed |
Up to 190 cards/hour - CR-80 Card (85.6 x 54 mm) |
| Built-in Devices |

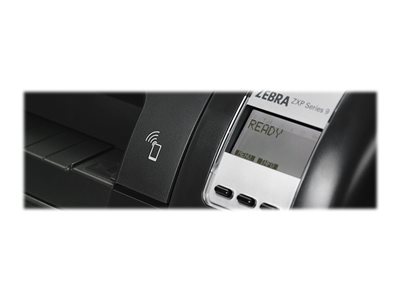

Status LCD, Contactless Smart Card encoder, Contact Smart Card encoder |
| Connectivity Technology |
Wired |
| Interface |
USB 2.0, LAN |
| Max Resolution (Colour) |
304 dpi |
| RAM |
|
| RAM Installed (Max) |
64 MB |
| Media Handling |
|
| Media Type |
ABS cards, composite card, ID cards |
| Max Media Size (Custom) |
85.6 mm x 54 mm |
| Card / Label Sizes |
CR-80 Card (85.6 x 54 mm) |
| Media Thickness Range |
0.762 mm - 1.016 mm |
| Media Feeders |
1 x automatic - 150 cards - CR-80 Card (85.6 x 54 mm) |
| Max Media Capacity |
150 cards |
| Output Trays Capacity |
100 cards |
| Expansion / Connectivity |
|

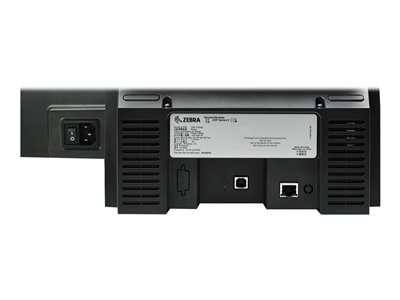

| Connections |
1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 |
| Miscellaneous |
|
| Features |
Security lock slot (cable lock sold separately) |
| Compliant Standards |
ISO 7816, ISO 14443 type A, ISO 14443 type B |
| Power |
|
| Power Device |
Power supply - internal |
| Voltage Required |
AC 120/230 V |
| Frequency Required |
50/60 Hz |
| Software / System Requirements |
|
| Software Included |
Drivers & Utilities, Zebra ZMotif |
| OS Required |
Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 7 / 8 / 10 |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - 2 years ¦ Limited warranty - printhead - lifetime |
| Environmental Parameters |
|
| Min Operating Temperature |
15 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
20 - 80% (non-condensing) |
| Dimensions & Weight |
|
| Width |
47.6 cm |
| Depth |
51.9 cm |
| Height |
33.4 cm |
| Weight |
12.5 kg |
