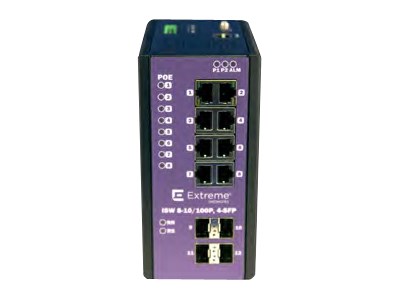

Extreme Networks ExtremeSwitching Industrial Ethernet Switches ISW 8-10/100P, 4-SFP - Switch - Managed - 8 x 10/100 (PoE+) + 4 x Gigabit SFP - DIN rail mountable, wall-mountable - PoE+ (240 W) - DC power

Extreme Networks | 16802
16802
16802
16802
16802
16802
16802
  • Highly resilient network redundant LACP
  • Multicast, broadcast and flooding storm control
  • Per VLAN mirroring
  • PD power consumption
Getting product prices...

Extended Spec

General
Device Type Switch - 8 ports - Managed
Enclosure Type DIN rail mountable, wall-mountable
Subtype Fast Ethernet
Ports 8 x 10/100 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 240 W
Performance Aggregate bandwidth: 9.6 Gbps ¦ Forwarding performance: 7.14 Mpps
Capacity VLANs supported: 1024 ¦ Queues per port: 8
MAC Address Table Size 8K entries
Jumbo Frame Support 9KB
Routing Protocol IGMPv2, IGMP, IGMPv3
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI
Authentication Method RADIUS, TACACS+
Features Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, DHCP client, tagged VLAN, 4MB packet buffer, MAC and IP-based ACLs support, Storm Control, Back Pressure Support, Management Information Base (MIB) II
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM 128 MB
Flash Memory 16 MB
Status Indicators Port status, power, status
Expansion / Connectivity
Interfaces 8 x 100Base-TX RJ-45 PoE+ ¦ 4 x 1000Base-X SFP
Power
Power Device Internal power supply
Power Redundancy Yes
Voltage Required DC 50 - 58 V
Power Consumption Operational 15 Watt
Miscellaneous
MTBF >25 years
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, RoHS, EN 61000-4-8, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, EN 61000-6-4, WEEE, FCC Part 15 A, EN 61000-4-9, IEC 60950-1 Second Edition, IP30, IEC 61000-4-9, EMC 2004/108/EC
Dimensions & Weight
Width 7.7 cm
Depth 12.8 cm
Height 15.4 cm
Weight 1.41 kg
Environmental Parameters
Min Operating Temperature -40 °C
Max Operating Temperature 75 °C
Humidity Range Operating 5 - 95% (non-condensing)
Max Storage Temperature 85 °C
