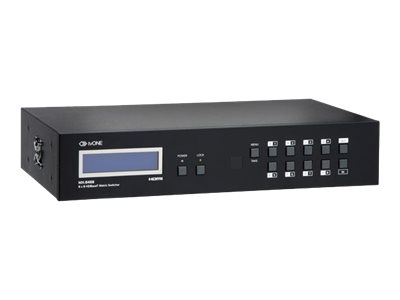

TV One MX-8488 8x8 HDMI Matrix Router - Video/audio/infrared switch - Managed - rack-mountable

TV One | MX-8488
MX-8488
MX-8488
MX-8488
MX-8488
MX-8488
MX-8488
  • 8x HDMI inputs
  • 8x HDBaseT outputs
  • HDMI v1.3, HDCP v1.1 & DVI v1.0 compliant
  • Deep Color & 3D support
  • IR I/O support
  • Rack-mountable
  • Controllable via front panel, RS-232, IR & Ethernet
  • EDID setting support
  • PC resolutions VGA-WUXGA
  • Power over HDBaseT support
Getting product prices...

Extended Spec

General
Device Type Video/audio/infrared switch - Managed
Enclosure Type Rack-mountable
Subtype HDMI
Max Resolution 1920 x 1200 / 1080p @ 60 Hz
Max Video Bandwidth 225 MHz
Features HDCP compliant, 3D support, HDBaseT technology
Compliant Standards HDCP 1.1, DVI 1.1
Built-in Devices Status LCD
UNSPSC Information 43211604 - Peripheral switch boxes
Expansion / Connectivity
Interfaces 8 x HDMI input ¦ 8 x HDBaseT RJ-45 ¦ 1 x serial (RS-232) ¦ 1 x management RJ-45 ¦ 9 x IrDA input mini-jack ¦ 9 x IrDA output mini-jack ¦ 1 x USB management
Power
Power Device External power adapter
Installed Qty 2
Miscellaneous
Included Accessories Remote control, 2 x IR transmitters, 2 x IR receivers
Rack Mounting Kit Included
Compliant Standards UL, cUL, GS, VESA EDID, FCC, RoHS, PSE Mark
Dimensions & Weight
Width 43.8 cm
Depth 25.5 cm
Height 9.3 cm
Weight 4.46 kg
Manufacturer Warranty
Service & Support Limited warranty - parts and labour - 3 years
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 20 - 90% (non-condensing)
Min Storage Temperature -20 °C
Max Storage Temperature 60 °C
Humidity Range Storage 10 - 85% (non-condensing)
