Extended Spec
| General |
|
| Device Type |
UPS - external |
| Colour |
Black |
| Bundled with |
APC SmartConnect |
| Power Device |
|
| UPS Technology |
Line interactive |
| Input Voltage |
AC 220/230/240 V |
| Input Voltage Range |
AC 160 - 286 V |
| Input Voltage Range (Adjustable) |
AC 151 - 302 V |
| Frequency Provided |
50/60 Hz ± 3Hz |
| Frequency Required |
50/60 Hz ± 3Hz |
| Input Connectors |
1 x power IEC 60320 C20 |
| Power Output Connectors Details |
8 x power IEC 60320 C13 ¦ 2 x IEC jumper ¦ 1 x power IEC 60320 C19 |
| Output Voltage |
AC 220/230/240 V ± 5% - 50/60 Hz |
| Power Capacity |
1980 Watt / 2200 VA |
| Output Waveform |
Sinewave |
| Surge Suppression |
Yes |
| Surge Energy Rating |
365 Joules |
| Circuit Protection |
Circuit breaker |
| Battery |
|
| Quantity |
1 |
| Technology |
Lead Acid Lead Acid |
| Run Time (Up To) |
8.7 min at full load ¦ 25 min at half load |
| Recharge Time |
3 hours |
| Transfer Time |
6 ms |
| Features |
Leak-proof, maintenance free, sealed |
| Networking |
|
| Remote Management Interface |
RS-232, USB |
| Expansion / Connectivity |
|
| Interfaces |

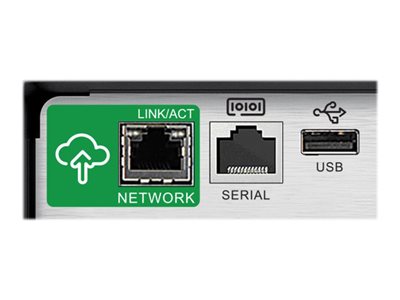

1 x management (RS-232) ¦ 1 x USB ¦ 1 x EPO (emergency power off) |
| Expansion Slots |
1 (total) / 1 (free) x SmartSlot |
| Miscellaneous |
|
| Cables Included |
Serial cable - external ¦ USB cable - external |
| Features |
Cold-start function, energy metre, LCD display, automatic self-test, Automatic Voltage Regulation (AVR), hot-swappable batteries, predicitive failure notification, audible alarm, emergency power off |
| Compliant Standards |
CSA, EAC, IEC 62040-1, EN 62040-1, IEC 62040-2, EN 62040-2, RCM, UL 1778, VDE, RoHS |
| Software / System Requirements |
|
| Software Included |
APC PowerChute Business Edition |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - replace or repair - 3 years ¦ Limited warranty - batteries - 2 years |
| Environmental Parameters |
|
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
0 - 95% |
| Sound Emission |
45 dBA |
| Dimensions & Weight |
|
| Width |
19.7 cm |
| Depth |
54.4 cm |
| Height |
43.5 cm |
| Weight |
48.8 kg |
| Dimensions & Weight (Shipping) |
|
| Shipping Width |
38.1 cm |
| Shipping Depth |
76.2 cm |
| Shipping Height |
69.9 cm |
| Shipping Weight |
61.9 kg |
