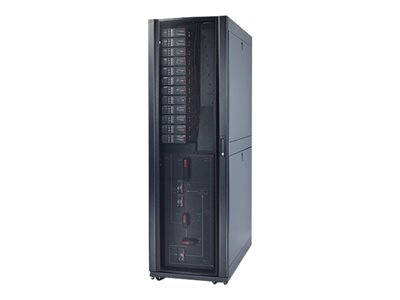

APC InfraStruXure Modular IT Power Distribution Unit with 36 Poles - Power distribution cabinet - AC 230/400 V - 160 VA - 3-phase - output connectors: 2 - for P/N: SY16K48H-PDNB, SY32K48H-PDNB, SY48K48H-PDNB, SY64K96H-NB, SY96K160H-NB, SY96K96H-NB

APC | PDUM160H-B
PDUM160H-B
PDUM160H-B
PDUM160H-B
PDUM160H-B
PDUM160H-B
PDUM160H-B
PDUM160H-B
PDUM160H-B
  • Smallest footprint minimizes your real estate expenses
  • Circuit breaker panel provides breaker positions for distribution to racks and power zones
  • PDU equipment can easily be relocated to accommodate a changing data center environment
  • Configure-to-order process allows APC to configure, install, and test complete system before shipping
  • Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer
  • Front-access servicing simplifies installation and maintenance while minimizing space requirements
Getting product prices...

Extended Spec

General
Device Type Power distribution cabinet - external
Power Device
Input Voltage AC 230/400 V
Input Wiring 3-phase
Frequency Required 40 - 70 Hz
Input Connectors 1 x hardwire 5-wire (3PH + N + G)
Power Output Connectors Details 2 x hardwire 5-wire (3PH + N + G)
Power Capacity 160 VA
Miscellaneous
Features Built-in maintenance bypass
Compliant Standards FCC Part 15 A
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 0 - 95%
Dimensions & Weight
Width 60 cm
Depth 107 cm
Height 199 cm
Weight 411 kg
Dimensions & Weight (Shipping)
Shipping Width 84.8 cm
Shipping Depth 121 cm
Shipping Height 215 cm
Shipping Weight 445 kg
