Extended Spec
General |
|
Device Type |

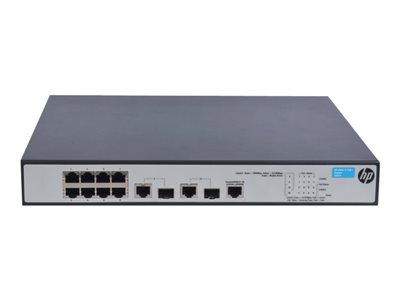

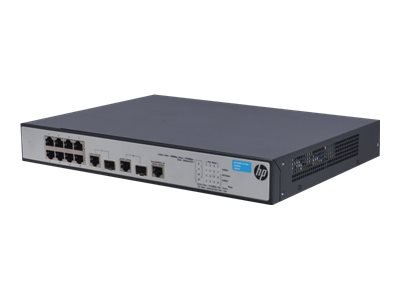

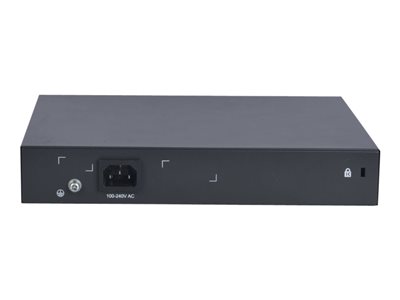

Switch - 8 ports - L3 - Managed |
Enclosure Type |
Rack-mountable 1U |
Subtype |
Fast Ethernet |
Ports |
8 x 10/100 (PoE) + 2 x combo Gigabit SFP |
Power Over Ethernet (PoE) |
PoE |
Capacity |
Routing table entries: 32 |
Routing Protocol |
Static IPv4 routing, static IPv6 routing |
Remote Management Protocol |
SNMP 1, RMON 2, SNMP, SNMP 3, SNMP 2c, HTTP, HTTPS |
Encryption Algorithm |
SSL |
Authentication Method |
RADIUS |
Features |
Flow control, Layer 3 switching, Layer 2 switching, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Cable Diagnostics Function, STP Root Guard, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), dual firmware images, NTP time synchronisation, link aggregation trunking, packet storm protection |
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
UNSPSC Information |
43222612 - Network switches |
Expansion / Connectivity |
|
Interfaces |
8 x 100Base-TX RJ-45 PoE ¦ 2 x 1000Base-X SFP ¦ 2 x 1000Base-T RJ-45 |
Power |
|
Voltage Required |
AC 120/230 V (50/60 Hz) |
Miscellaneous |
|
Rack Mounting Kit |
Included |
Compliant Standards |
FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, FCC Part 15, ICES-003 Class A, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03 |
Manufacturer Warranty |
|
Service & Support |
Limited warranty - lifetime |
