Extended Spec
| General |
|
| Device Type |

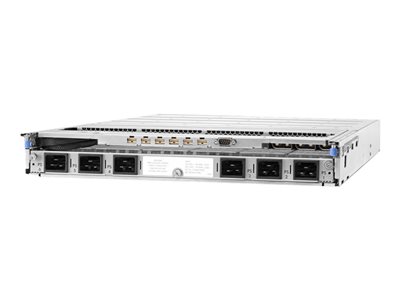

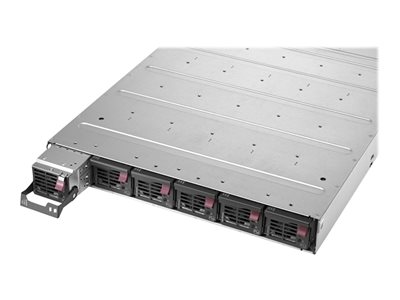

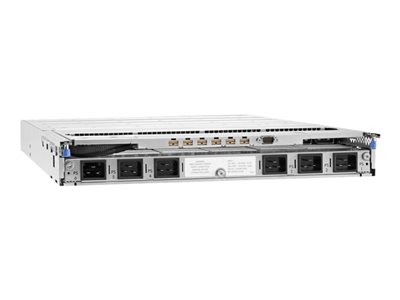

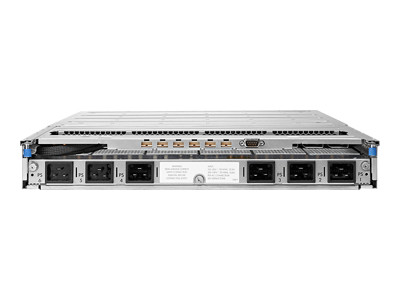

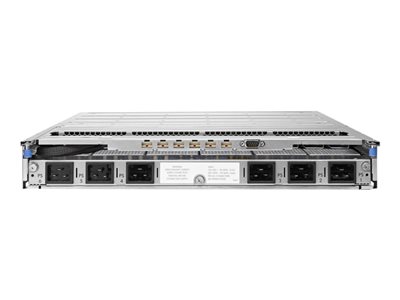

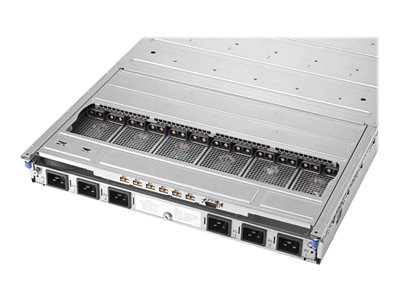

Power enclosure - rack-mountable |
| Height (Rack Units) |
1.5U |
| Rack Size |
19" |
| UNSPSC Information |
39121004 - Power supply units |
| Power Device |
|
| Supported Power Modules |
6 |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
N+1 (with optional power supply), N+N (with optional power supply) |
| Input Voltage |
AC 200-240 V |
| Miscellaneous |
|
| Rack Mounting Kit |
Optional |
| Compliant Standards |
EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, BSMI CNS 13438, GOST-R, EN 6100-3-2, FCC Part 15 B Class A, KCC Class A, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, EN 62479:2010, AS/NZS CISPR 22 |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - parts and labour - 1 year - on-site |
| Environmental Parameters |
|
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
55 °C |
| Humidity Range Operating |
15 - 95% (non-condensing) |
| Dimensions & Weight |
|
| Width |
44.81 cm |
| Depth |
6.47 cm |
| Height |
78.44 cm |
| Weight |
9.07 kg |
| Dimensions & Weight (Shipping) |
|
| Shipping Width |
60 cm |
| Shipping Depth |
45.7 cm |
| Shipping Height |
100 cm |
