| General |
|
| Device Type |

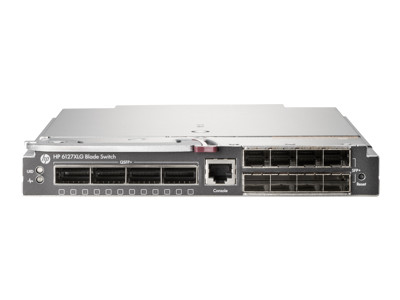

Switch - 12 ports - L3 - Managed |
| Enclosure Type |
Plug-in module |
| Subtype |
40 Gigabit Ethernet |
| Ports |
4 x 40 Gigabit QSFP+ + 8 x 10 Gigabit SFP+ |
| Performance |
Bandwidth: 240 Gbps ¦ Throughput: 1.2 Tbps ¦ Forwarding performance: 14800000 packets per second ¦ Forwarding performance: 59200000 packets per second ¦ Latency: 1 µs |
| Capacity |
Virtual interfaces (VLANs): 4094 ¦ IGMP groups: 1024 |
| MAC Address Table Size |
128K entries |
| Jumbo Frame Support |
10000 bytes |
| Routing Protocol |
OSPF, RIP, BGP-4, RIP-1, RIP-2, BGP, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLD, MPLS, CIDR, BGP+ |
| Remote Management Protocol |
SNMP 1, SNMP 2, SNMP, Telnet, SNMP 3, HTTPS, TFTP, SSH-2 |
| Encryption Algorithm |
IKE |
| Authentication Method |
RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features |
Flow control, Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, full duplex mode, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), Jumbo Frames support, IPSec passthrough, MLD snooping, Device Link Detection Protocol (DLDP) support, Endpoint Admission Defense (EAD), STP Root Guard, Unicast Reverse Path Forwarding (URPF), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), dynamic ARP protection, DHCP protection, Multiple VLAN Registration Protocol (MVRP), Maximum Likelihood Demodulation (MLD), static routing, Ingress Layer 2 MAC Access Control Lists (ACLs), Strict Priority (SP), Intelligent Resilient Framework Technology (IRF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, FCoE support, Virtual Ethernet Port Aggregator (VEPA), IP source guard, Shortest Path Bridging (SPB), ICMP Router Discovery Protocol (IRDP), Fibre Channel Forwarder (FCF), NPV Gateway mode, Transparent Interconnection of Lots of Links (TRILL), Virtual Extensible LAN (VXLAN) |
| Compliant Standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3ag |
| RAM |
2 GB |
| Flash Memory |
512 MB |
| Status Indicators |
Unit ID, link/activity |
| UNSPSC Information |
43222612 - Network switches |
| Expansion / Connectivity |
|
| Interfaces |
4 x 40Gbit LAN QSFP+ ¦ 8 x 10Gbit LAN SFP+ ¦ 1 x console RJ-45 management |
| Miscellaneous |
|
| Compliant Standards |
FCC Class A certified, BSMI CNS 13438 Class A, CISPR 24, CISPR 22, MIC, ICES-003 Class A, UL 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, IPv6 Ready, VCCI Class A, IPsec/IKE, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements |
|
| Software Included |
HP Intelligent Management Center |
| Dimensions & Weight |
|
| Width |
19.28 cm |
| Depth |
26.77 cm |
| Height |
2.79 cm |
| Weight |
2 kg |
| Environmental Parameters |
|
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
