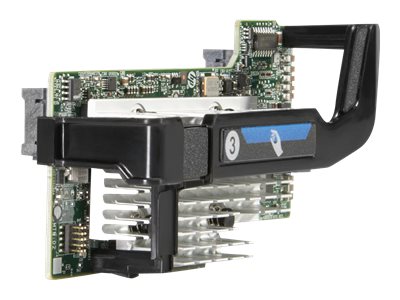

HPE FlexFabric 630FLB - Network adapter - PCIe 2.0 x8 - 20 Gigabit Ethernet x 2 - for ProLiant BL460c Gen10, BL460c Gen9, BL465c Gen8, BL660c Gen8, WS460c Gen9

Hewlett Packard Enterprise | 700065-B21
700065-B21
700065-B21
700065-B21
700065-B21
700065-B21
700065-B21
700065-B21
700065-B21
  • 2X bandwidth improvement to remove server I/O bottlenecks.
  • Consolidate server I/O connections reducing NIC/HBA adapters, cabling and switch port requirements.
  • Provision multiple adapters in seconds using Virtual Connect profiles.
Getting product prices...

Extended Spec

General
Device Type Network adapter
Interface (Bus) Type PCI Express 2.0 x8
Networking
Ports 20 Gigabit Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 20 Gigabit Ethernet
Data Transfer Rate 20 Gbps
Network / Transport Protocol TCP/IP, UDP/IP
Remote Management Protocol SNMP
Features VLAN support, Accelerated iSCSI, Quality of Service (QoS), Jumbo Frames support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), TCP Offload Engine (TOE), HP Virtual Connect FlexFabric technology, iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qau
Processor / Memory
Processor 1 x Qlogic BCM57840S
Expansion / Connectivity
Expansion Slots 1 x FlexibleLOM
Miscellaneous
Compliant Standards FCC Class A certified, UL, BSMI, BSMI CNS 13438 Class A, ICES-003, EN55024, FCC Part 15, RoHS, VCCI V-3 Class A ITE, EN 61000-3-2:2006, KN24, EN 61000-3-2:2008, KN22 Class A, EN55022:2006 Class A
Power
Power Consumption Operational 12 Watt
Software / System Requirements
OS Required Microsoft Windows Server 2008 SP2, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2 SP1 (32/64 bits), Red Hat Enterprise Linux 5.9, Citrix XenServer 6.1, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.4, VMware vSphere 5.5, Oracle Solaris x64 11, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, Oracle Solaris 10 update 10, Red Hat Enterprise Linux 5.10, VMware ESXi 5.0 update 3, VMware ESXi 5.1 update 2
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 55 °C
Humidity Range Operating 10 - 90% (non-condensing)
Compatibility Information
Designed For HPE ProLiant BL460c Gen10, BL460c Gen9, BL460c Gen9 Base, BL460c Gen9 Entry, BL460c Gen9 Performance, BL465c Gen8, BL660c Gen8, BL660c Gen8 Entry, BL660c Gen8 Performance, WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
